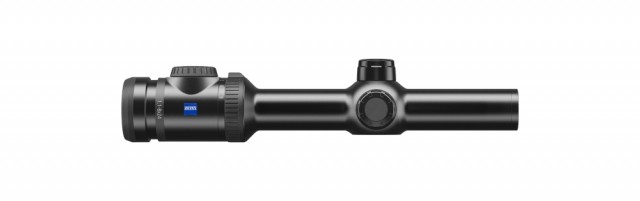

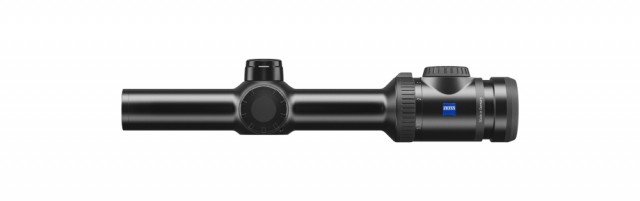

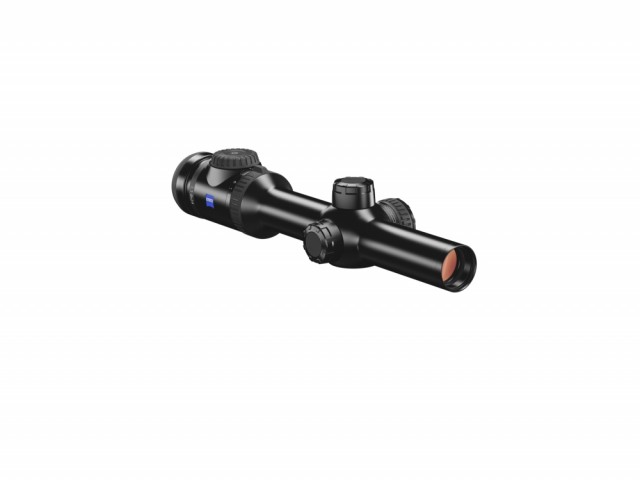

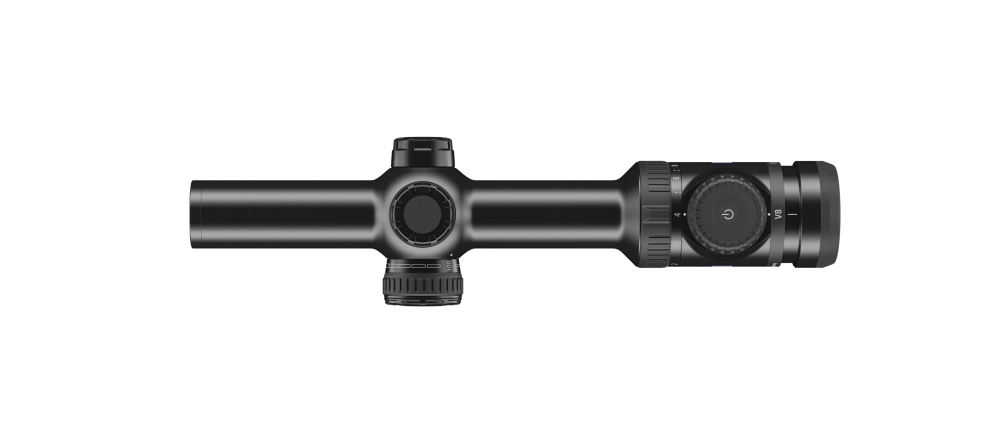

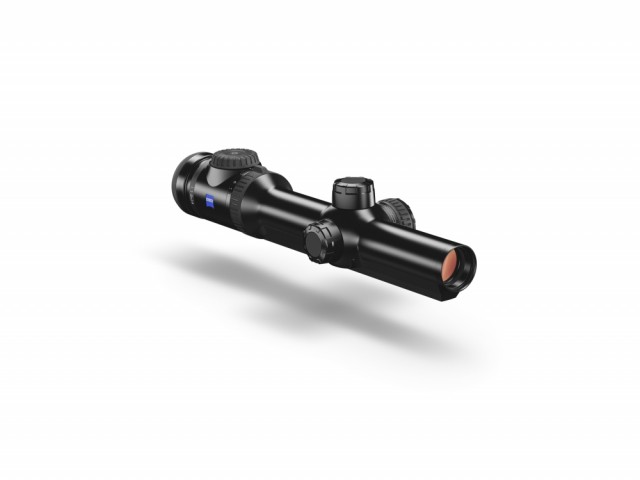

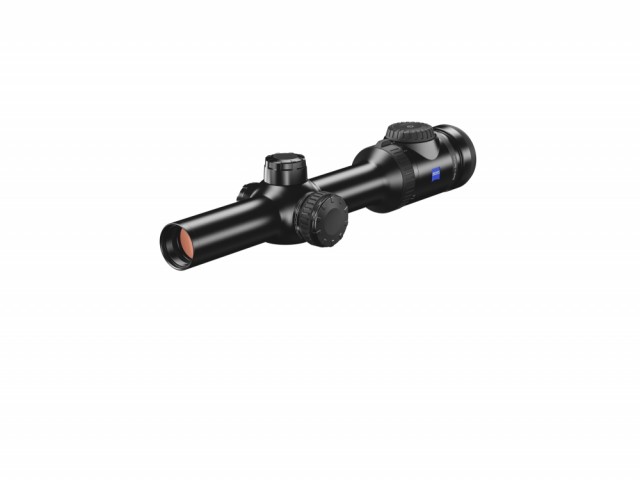

Zeiss Victory V8 1,1-8x24 Belyst. T* 30mm

ZEISS V8 1.1-8x24
Reticle54, 60
Performance
Features
Physical
Magnification
1.1 –8 ×
Effectivelensdiameter
10.6 –24 mm
Exit pupildiameter
9.9 –3.1 mm
Twilight factor
3.4 –13.9
Field of view at 100 m (yds)
39.6 –5.4 m (119 –16 ft)
Objectiveviewingangle
22.2°–3°
Diopter adjustmentrange
− 3.5 | + 2 dpt
Eye relief
92 mm
Parallaxsetting
100 m
Vertical adjustment range at 100 m
500 cm
Lateral adjustment range at 100 m
320 cm
Adjustment per click at 100 m
1 cm
Centre tubediameter
30 mm
Eyepiecetubediameter
46 mm
Objectivetubediameter
30 mm

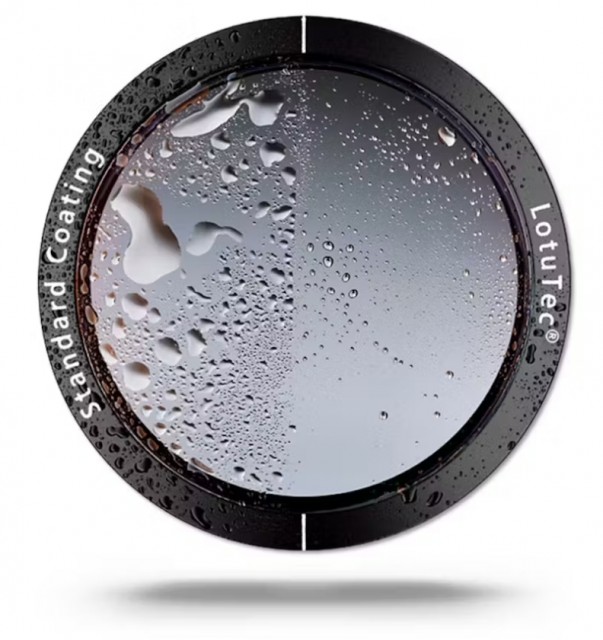

LotuTec | Nitrogen filled
+ | +
Waterresistance
400 mbar
Operating temperature
− 25°C | + 50°C (− 13°F | + 122°F)
Length
283 mm (11.1 ´´)
Weight(withoutinnerrail)
550 g (19.4 oz)
Weight(withinnerrail)
590 g (20.8 oz)
