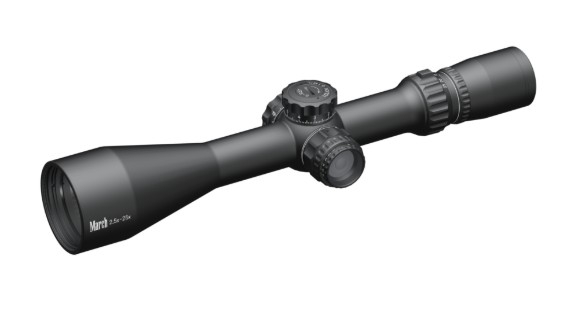

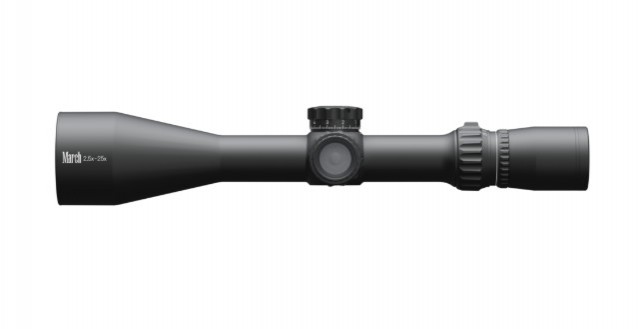

March Compact 2.5-25x52 D25V52TIML

Tactical Model (Illuminated)

March Compact 2.5-25x52
10x zoom ratio scope covering extended wide range of tactical and hunting situation.

・10X Zoom in SFP, MIL
・ED Glass
・30mm diameter body
・52mm objective lens
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating

Technical Data

		Low	High
Magnification		2.5x	25x
Effective Lens Diameter		52mm
Body Tube Diameter		30mm
Exit Pupil		--	2.08mm (0.08inch)
Field of View (real)	degree	8.0°	0.8°
	ft/100yd	42.0ft	4.2ft
	m/100m	13.99m	1.40m
Eye Relief		85-100mm (3.35-3.94inch)	89-96mm (3.5-3.78inch)

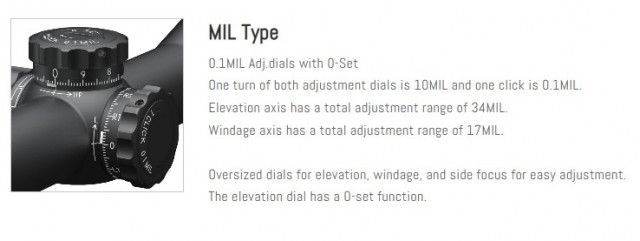

1 Click Adjustment		0.1MIL
Elevation Travel		34MIL
Windage Travel		17MIL
Focus Distance		10yd - infinity
Reticle		MML FD-1 FD-2
In the box		Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth Fast Lever Hex wrench MD disk
Scope Size	A	338mm (13.31inch)
	B	139mm (5.47inch)
	C	60mm (2.36inch)
	D	41mm (1.61inch)
	E	105mm (4.13inch)
	F	94mm (3.7inch)
	G	53mm (2.09inch)
	H	48mm (1.89inch)
Weight		685g (24.16oz)
